Brake Caliper, Removing And Installing, Six-Piston Steel Brake: Removing

-- Remove the front wheel. Refer to WHEELS AND TIRES .

-- Disconnect the connector -1- for the Right Front Brake Pad Wear Sensor -G35- on the right brake caliper.

Courtesy of AUDI OF AMERICA, LLC

TIP:

Courtesy of AUDI OF AMERICA, LLC

Pushing the brake pads -3- slightly into the brake caliper using suitable pliers -1- makes it easier to remove the brake caliper from the brake rotor.
To prevent damage to the paint coat on the brake caliper, place a piece of rubber -2- between the pliers and brake caliper.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Improper handling increases the risk of destroying the brake caliper.

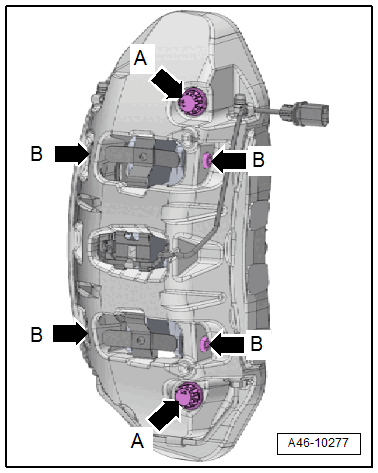

- Never loosen the brake caliper/brake carrier bolts.

-- Do not loosen the brake caliper/brake carrier threaded connection. Refer to Figure.

-- Remove the screws -arrows-.

-- Carefully remove the brake caliper with the brake pads from the brake rotor.

CAUTION:

There is a risk of damaging the brake hose due to the weight of the brake caliper.

- Never let the brake caliper hang on the brake hose.

-- Hang the brake caliper using a suitable wire.

CAUTION:

There is a risk of damaging the brake caliper piston if handled incorrectly.

- Never activate the brakes if the brake caliper is removed.
