Brake Caliper, Replacing, Six-Piston Ceramic Brake: Installing
Installation in reverse order of removal and note the following:
-- Bring the brake caliper into its installed position and tighten the bolts -arrows-.
-- Install the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING, SIX-PISTON CERAMIC BRAKE .

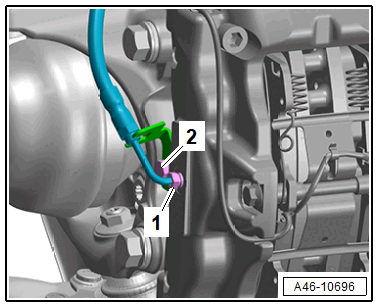

-- Bring the bracket into the installation position and tighten the bolt -2-.
-- Fasten the brake hose -1- to the brake caliper.
- Make sure the brake hose is routed correctly.
- Make sure the brake hose is not blocked, bent, twisted or rubbing against the vehicle.
-- Remove the : VAG1869/2 .
-- Only bleed the brakes on the wheel from which the brake caliper and the brake hose were loosened. Refer to HYDRAULIC SYSTEM, BLEEDING .
- If the brake pedal still feels "soft", completely bleed the brakes. Refer to HYDRAULIC SYSTEM, BLEEDING .
-- Install the front wheel, while observing the safety precautions for ceramic brakes. Refer to WHEELS AND TIRES .
Faulty brakes increase the risk of an accident.
- Make sure the brakes are working correctly before driving the vehicle for the first time.
-- With the vehicle stationary, firmly press the brake pedal several times so that the brake pads in the operating condition properly sit in their respective position.
-- Check brake fluid level, and fill if necessary.
