Electric Vacuum Pump, Removing And Installing: Removing

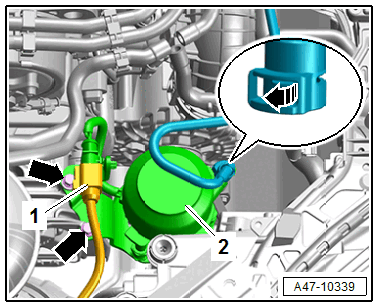

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the locking mechanism in the direction of -arrow- and remove the vacuum line.

-- Remove the bolts -arrows- and remove the vacuum pump -2- with the bracket.
