Check Valve, Removing And Installing: Removing

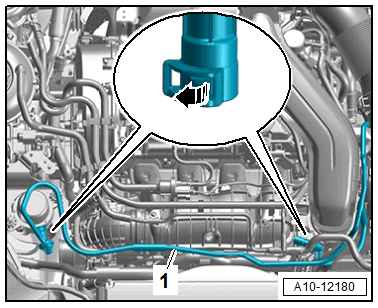

Vehicles with 1.4L TFSI Engine:

-- Release the retainer in direction of -arrow- and remove the vacuum hose -1-.

-- Free up the vacuum hose on the air duct pipe -2-.

Vehicles with 1.5L/2.0L TFSI Engine:

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

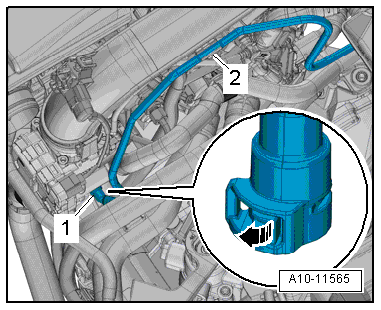

Vehicles with 1.5L TFSI engine:

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch in direction of -arrow-, remove the vacuum hoses and do not damage.

-- Free up the vacuum hose -1- on the intake manifold.

Vehicles with 2.0L TFSI engine:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum hose -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the release button on the vacuum hose -1- and remove the hose from the vacuum pump.

Vehicles with a TDI Engine:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover. Refer to the appropriate Service Information .

-- Free up the vacuum hoses -arrows-.

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

-- Release the retainer in direction of -arrow- and remove the vacuum hose -1-. (Different versions depending on the version).

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- If installed, disconnect the connector -1- from the Vacuum Sensor -G608-.

-- Carefully remove the vacuum hose -2- from the brake booster at the same time do not damage.

Vehicles with 2.5L TFSI Engine:

-- Remove the air filter housing. Refer to the appropriate Service Information .

-- Remove the vacuum hose -2-.

-- Free up the vacuum hose -1-, pull it out of the brake booster vacuum pump and remove it.
