Overview - Door Seals

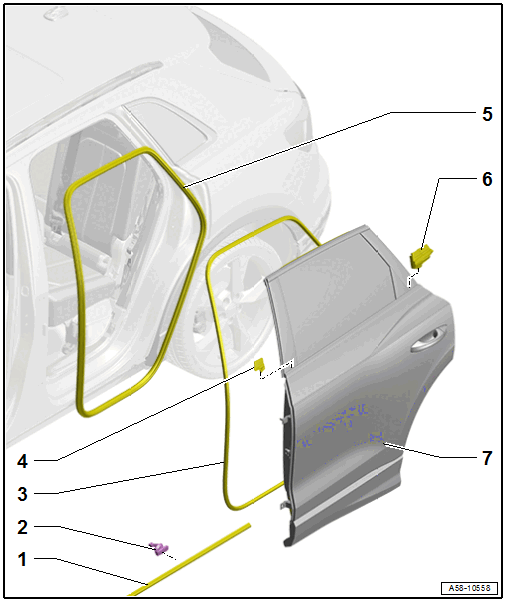

Fig 1: Exploded View Of Rear Door Seals

Courtesy of AUDI OF AMERICA, LLC

Side Sill Seal
- Removing and Installing. Refer to SIDE SILL SEAL, REMOVING AND INSTALLING .
Clip
- Replace after removing
Outer Door Seal
- Replace after removing
- Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
B-Pillar Seal
Inner Door Seal
- Removing and Installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
C-Pillar Seal
Door
