Overview - Spoiler, RS Q3

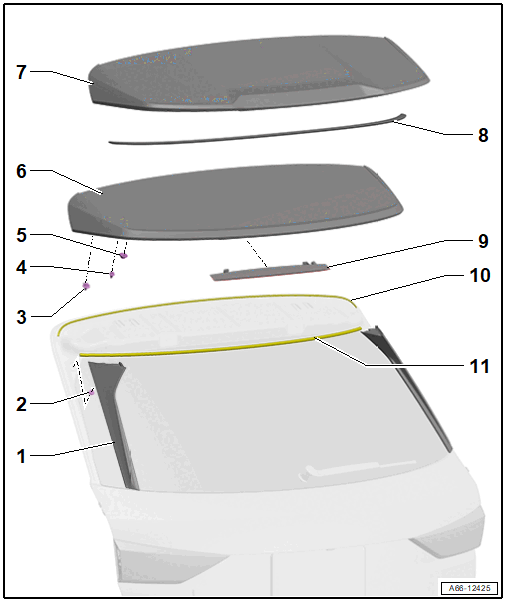

Fig 1: Exploded View Of Spoiler, RS Q3

Courtesy of AUDI OF AMERICA, LLC

Spoiler
- Side
- Replace after removing
- Removing and Installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
Clip
Clip
- Quantity: 2
Clip
- Quantity: 5
Nut
- Quantity: 4
- 4 Nm
Spoiler
- Sportback
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
Spoiler Lip
- Sportback
- Replace after removing
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
High-Mounted Brake Lamp
- Overview. Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP .
Foam Seal
- Front
Foam Seal
- Rear
