Molded Foam Part Cover, Removing And Installing

Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

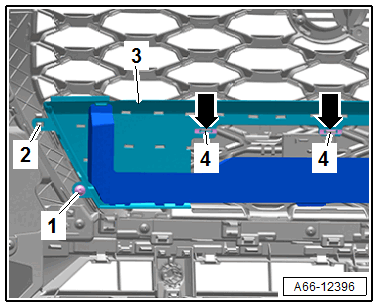

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the clips -arrows- at the same time do not damage the tabs -4-.

-- Release the retainer -2- and remove the mount -3-.

Install in reverse order of removal.

Tightening Specifications

• Refer to OVERVIEW - RADIATOR GRILLE, Q3 SPORTBACK
