QUATTRO Name Badge, Removing And Installing, RS Q3

Name Badge, Removing

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the bumper cover slightly forward.

-- Insert a narrow screwdriver between the reinforcement brace for the radiator grille and lock carrier.

Courtesy of AUDI OF AMERICA, LLC

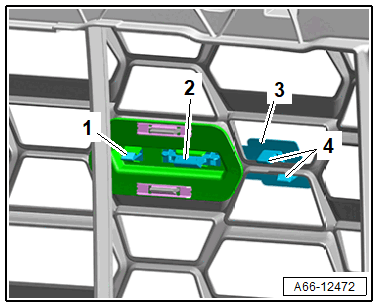

-- Release the retainers -1, 2 and 4- and remove the name badge -3- forward.

Mount, removing

-- Remove the reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING, RS Q3 .

-- Remove the name badge. Refer to Name Badge, Removing  above.

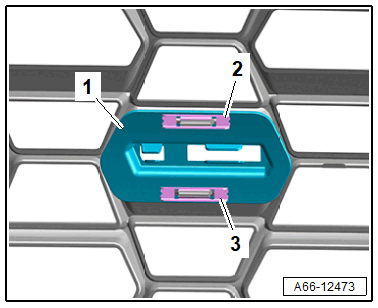

-- Pry up the clamps -2 and 3- at the same time do not destroy the tabs.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1-.

Installing

Install in reverse order of removal.
