QUATTRO Name Badge, Removing And Installing, Q3 SPORTBACK

• General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .
• The following components must be replaced after removal. Refer to OVERVIEW - NAME BADGES AND EMBLEMS .

Special tools and workshop equipment required

• Roller: T40400

  Courtesy of AUDI OF AMERICA, LLC

• Wiring Harness Repair Set - Hot Air Blower: VAS 1978/14A
  Fig 1: Hot Air Blower VAG1416

  Courtesy of AUDI OF AMERICA, LLC
• Cleaning Solution. Refer to the Parts Information.

Name Badge, Removing

Courtesy of AUDI OF AMERICA, LLC

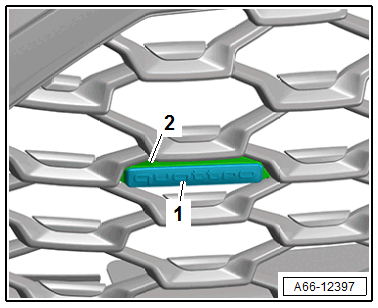

-- Use the Wiring Harness Repair Set - Hot Air Blower: VAS 1978/14A  to warm up the name badge -1- in the adhesion area and remove the mount -2-.

Mount with name badge, removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the radiator grille reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .

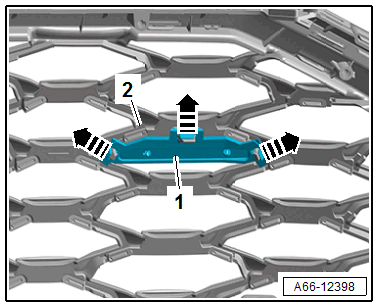

-- Release the retainers -arrows-.

-- Remove the mount -1- with the name badge from the radiator grille -2-.

Installing

Install in the reverse order of removal while noting the following:

• The cover and the name badge must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue.

-- Clean the adhesive surface with Cleaning Solution and let it dry.

-- Remove the protective film from the adhesive tape -1-.

Courtesy of AUDI OF AMERICA, LLC

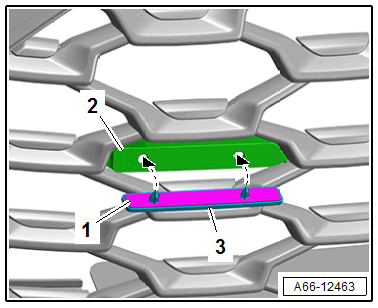

-- Position the name badge -3- over the tabs on the mount -2- -arrows-.

-- Push on the name badge with the Roller : T40400  on the cover.

• Resting time approximately 30 minutes at room temperature
