Dimensions - Side Name Badges And Emblems

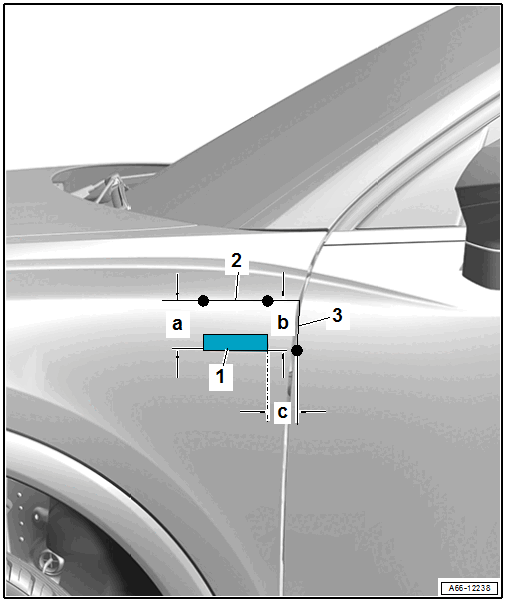

Fig 1: Side Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

1. Type/Emblem
   • S line
     • Dimension -a- = 63 mm
     • Dimension -b- = 61 mm
     • Dimension -c- = 29 mm
2. Reference Edge in Fender
3. Rear Edge on Fender
