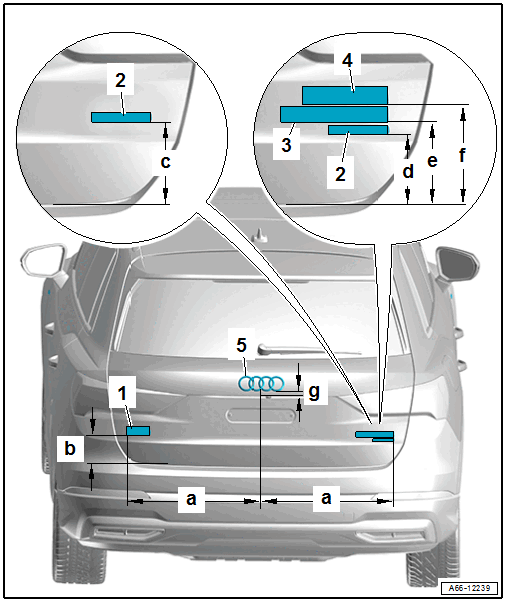

Dimensions - Rear Name Badges And Emblems
Courtesy of AUDI OF AMERICA, LLC
- Left Name Badge
- Q3
- RS Q3
- Dimension -a- = 586 mm
- Dimension -b- = 125 mm
- Right Name Badge
- quattro
- Dimension -a- = 587.5 mm
- Dimension -c- = 122 mm
- Right Name Badge
- TFSI
- 35 TFSI
- 40 TFSI
- 45 TFSI
- 45 TFSI e
- TDI
- 35 TDI
- 40 TDI
- Dimension -a- = 587.5 mm
- Dimension -d- = 106.3 mm
- Dimension -e- = 125 mm
- Right Name Badge
- China
- 35 TFSI
- 40 TFSI
- 45 TFSI
- Dimension -a- = 587.5 mm
- Dimension -d- = 106.3 mm
- Dimension -e- = 125 mm
- Dimension -f- = 151 mm
- Audi Emblem
