Wheel Cover, Removing And Installing, Front: Removing

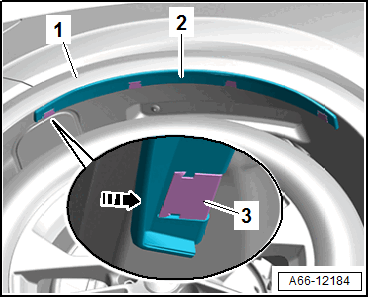

-- Equipment version: pry out the clamps -3- and remove the wheel housing extension -2- from the wheel arch trim -1- to do so press on the area of the clamps on the wheel housing extension -arrow-.

GWWA66-12184Courtesy of AUDI OF AMERICA, LLC

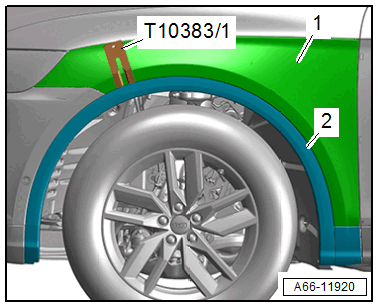

-- Carefully release the wheel arch trim -2- with the Wedge Set : T10383/1  from the bumper side section and from the fender -1- and remove.

GWWA66-11920Courtesy of AUDI OF AMERICA, LLC
