Sill Panel Trim, Removing And Installing: Removing

Versions with illuminated sill panel:

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Loosen the inner door seal in the area of the wiring harnesses.

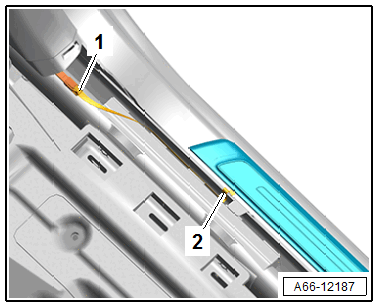

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -2-.

Continuation:

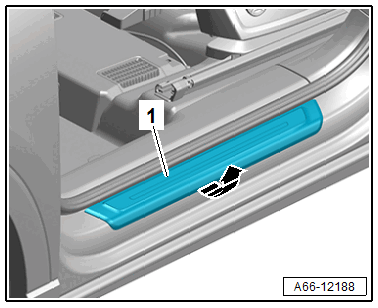

-- Carefully warm up the sill panel trim -1- using the Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A  .

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the sill panel trim from the side sill -arrow- using the Trim Removal Wedge: 3409  . Do not damage the paint coat while doing so.
