Overview - Covers

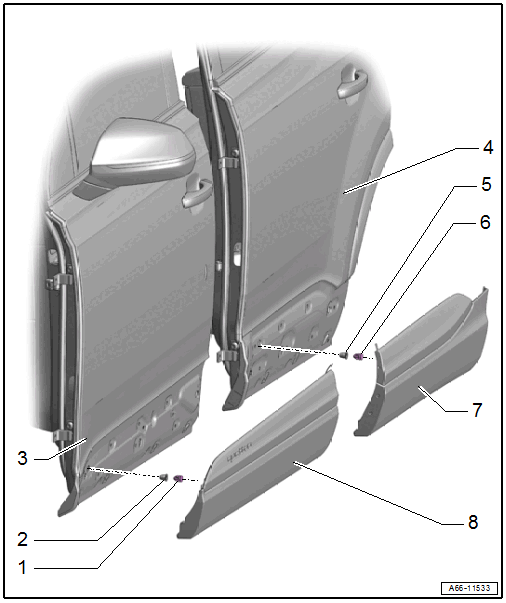

Fig 1: Exploded View Of Covers

Courtesy of AUDI OF AMERICA, LLC

Clip
- Quantity: 8
Grommet
- For the clip
Door
- Front
Door
- Rear
Grommet
- For the clip
Clip
- Quantity: 7
Door Cover
- Rear
- Replace after removing
- Removing and Installing. Refer to DOOR COVER, REMOVING AND INSTALLING, REAR .
Door Cover
- Front
- Replace after removing
- Removing and Installing. Refer to DOOR COVER, REMOVING AND INSTALLING, FRONT .
