Overview - B-Pillar Trim

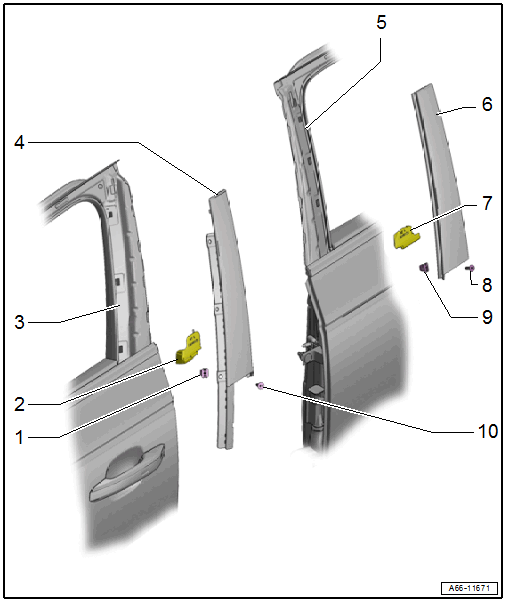

Fig 1: Exploded View Of B-Pillar Trim

Courtesy of AUDI OF AMERICA, LLC

Clip Nut
- Quantity: 3
Sealing Piece
- For the front door B-pillar trim
Door
- Front
Trim
- Front Door B-Pillar
- Removing and Installing. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT .
Door
- Rear
Trim
- Rear Door B-Pillar
- Removing and Installing. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR .
Sealing Piece
- For the rear door B-pillar trim
Bolt
- Quantity: 3
- 2.5 Nm
Clip Nut
- Quantity: 3
Bolt
- Quantity: 3
- 2.5 Nm
