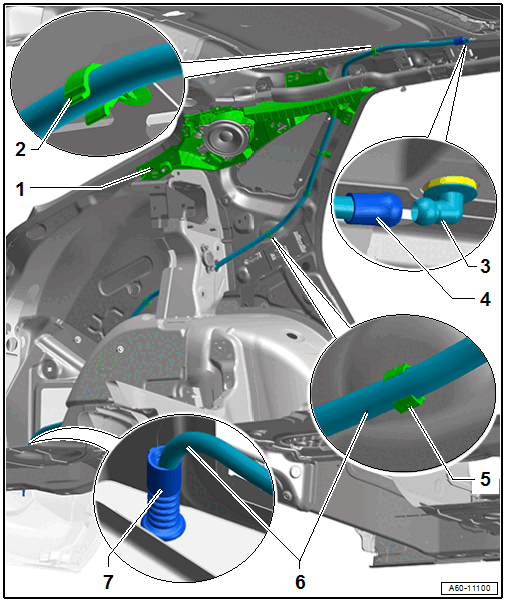

Overview - Water Drain Hoses, Q3 SPORTBACK

Courtesy of AUDI OF AMERICA, LLC

Bracket/Head Curtain Airbag Guide
- Removing and installing. Refer to OVERVIEW - D-PILLAR TRIM PANEL .
Clip
- For the water drain hose
Connection
- With seal
- Clip on the roof
Coupling Piece
- Attach to the connection
Clip
- For the water drain hose
Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to REAR WATER DRAIN HOSES, REMOVING AND INSTALLING, Q3, Q3 SPORTBACK .
- Pay attention to the markings on the upper clip and on the grommet
Grommet
- Push all the way into the body using a soap solution
