Sunroof Shade Cables, Removing And Installing: Removing
-- Remove the sliding and tilting mechanism. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .
-- Sunroof Shade Motor -V260-, Removing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING .
CAUTION:
Risk of damaging the operating cable by deforming it.
- Never sharply bend or kink the operating cable.

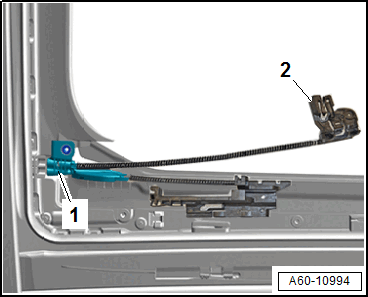

-- Remove the cable driver -2- for the sunroof shade from the inner bracket -1-.
