Sliding And Tilting Mechanism Cable, Removing And Installing: Removing

-- Remove the sliding and tilting mechanism. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .

-- Remove the Sunroof Motor -V1-. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING, Q3 SPORTBACK .

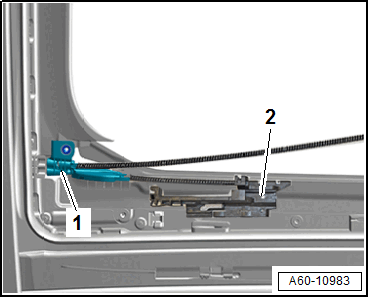

-- Remove the cable driver -2- for the sunroof frame from the inner bracket -1-.
