Overview - Wind Deflector, Q3

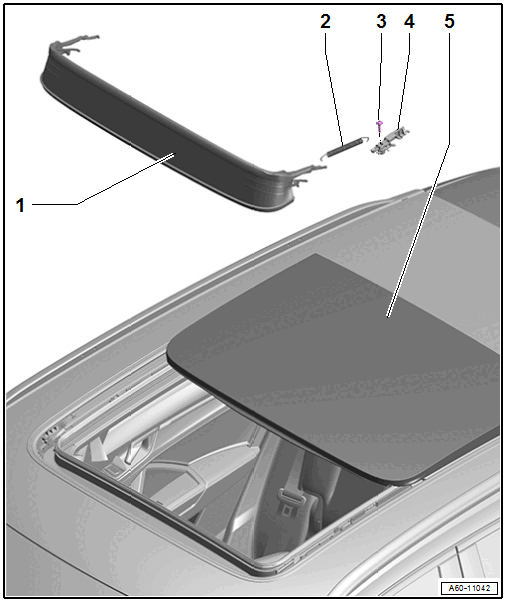

Fig 1: Exploded View Of Wind Deflector Q3
GWWA60-11042Courtesy of AUDI OF AMERICA, LLC
  1. Wind Deflector
  2. Spring
    • For wind deflector
  3. Bolt
    • 1.6 Nm
  4. Bearings
    • With front glass panel guide
  5. Glass Panel
    • Front
