Overview - Adhesive Beads On Sliding Sunroof

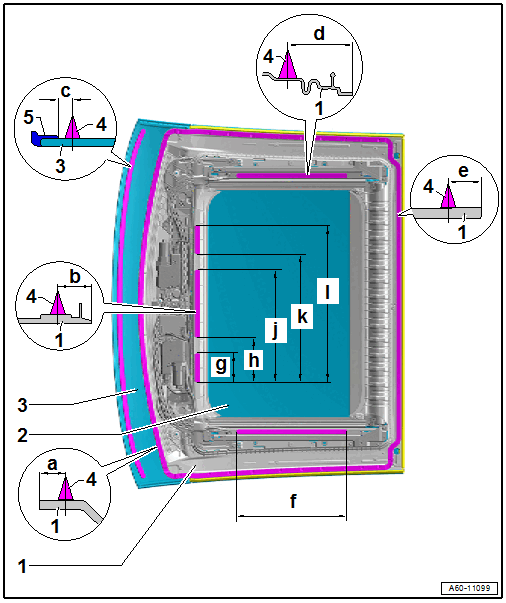

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Sunroof Frame
2. Glass Panel
3. Glass Trim
4. Adhesive Bead
   • Dimension -a- = 8.6 mm
   • Dimension -b- = 33.9 mm
   • Dimension -c- = 12.5 mm
   • Dimension -d- = 49.5 mm
   • Dimension -e- = 8.5 mm
   • Dimension -f- = 343 mm
   • Dimension -g- = 95 mm
   • Dimension -h- = 145 mm
   • Dimension -j- = 365 mm
   • Dimension -k- = 415 mm
   • Dimension -l- = 510 mm
5. Molding
