Rear Glass Panel, Removing And Installing, Q3: Removing

-- Remove the front glass panel. Refer to FRONT GLASS PANEL, REMOVING AND INSTALLING, Q3 .

-- Remove the inner seal in the rear area from the roof frame toward the inside -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- on the rear of the glass panel -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -arrows- from the glass panel -1-.

Courtesy of AUDI OF AMERICA, LLC

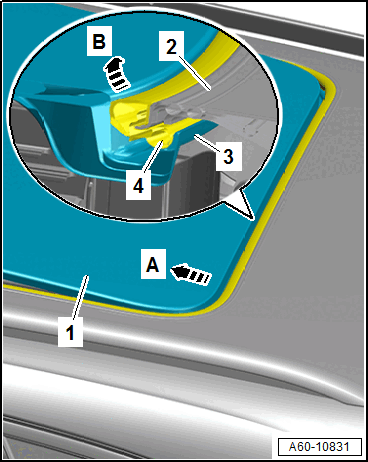

-- Pull the rear glass panel -1- toward the front -arrow A- and pivot it upward -arrow B-. At the same time the rain water drain channel -3- from the glass panel is removed behind the roof frame -2- and the seal -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Lift out the rear glass panel upward.
