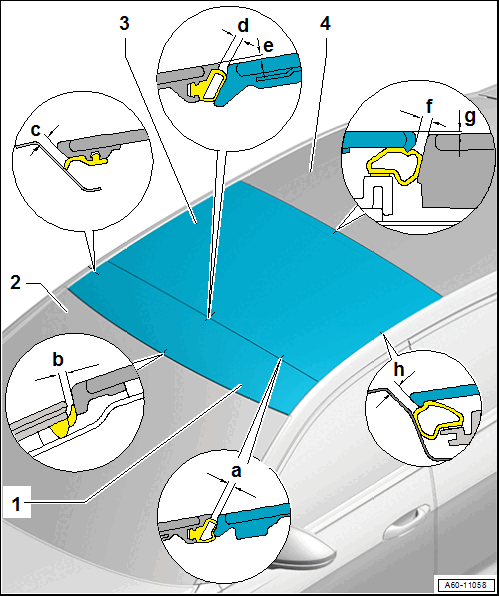

Dimension -a- = 2.8 mm
Dimension -b- = 2.0 mm
Dimension -c- = 3.5 mm
Dimension -d- = 3.2 mm
Dimension -e- = 1.2 mm
Dimension -a- = 2.8mm
Dimension -f- = 3.1 mm
Dimension -g- = 0.6 mm
Dimension -h- = 2.9 mm
Courtesy of AUDI OF AMERICA, LLC
