Overview - Locking Mechanism

The overview only applies to the A3.

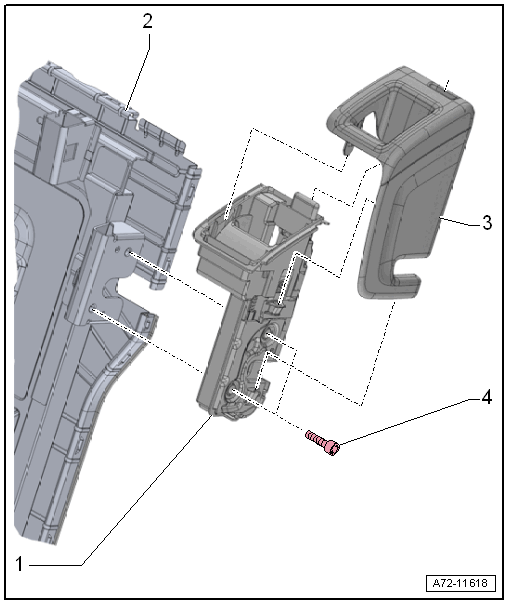

Fig 1: Exploded View Of Rear Seat Locking Mechanism

Courtesy of AUDI OF AMERICA, LLC

1. Locking Mechanism
   • For the rear seat backrest
   • Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
2. Backrest Frame
3. Trim
   • For the locking mechanism
   • Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
   • Press on until it engages audibly
4. Bolt
   • 25 Nm
   • Quantity: 2
