Locking Piece, Removing And Installing: Removing

-- Move the rear seat into the most forward position and fold the backrest forward.

-- Remove the screw -2- as much as possible.

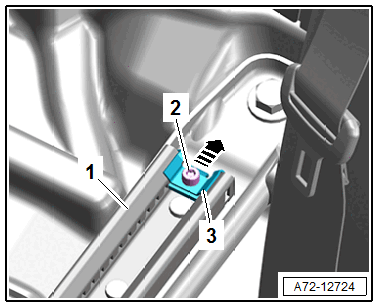

GWWA72-12724Courtesy of AUDI OF AMERICA, LLC

-- Remove the locking piece -3- toward the rear from the seat rail -1- in direction of -arrow-.
