Center Armrest, Removing And Installing, Q3: Removing

-- Fold down the center armrest approximately halfway.

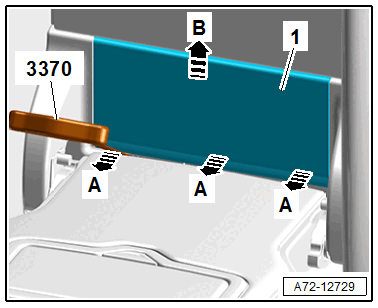

-- Guide the Backrest Panel Tool: 3370  under the cover and hook it in at the bottom of the cover.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1- carefully from the trim panel and unclip it in direction of -A arrows-.

-- Disengage the center armrest cover upward in direction of -arrow B- and remove.

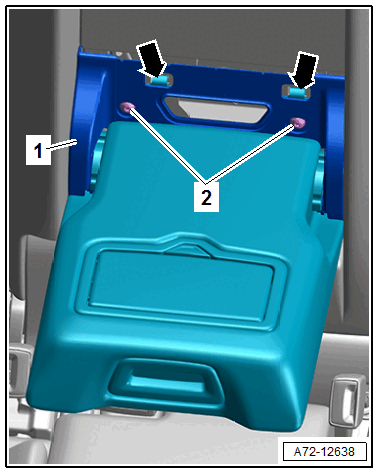

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the center armrest -1- slightly upward, disengage on the backrest with pass-through -arrows- and remove.
