Center Armrest, Removing And Installing, A3: Removing

-- Fold the backrest with pass-through and center armrest forward.

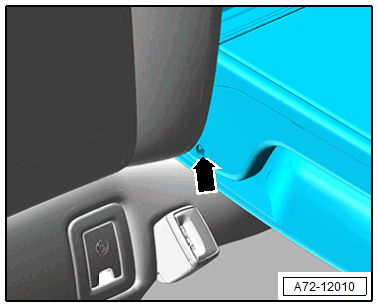

-- Remove the bolt -arrow- on the left and right.

GWWA72-12010Courtesy of AUDI OF AMERICA, LLC

-- Fold the backrest with pass-through back again.

-- Remove the center armrest from the pass-through.
