Center Armrest Trim Panel, Removing And Installing: Removing

-- Remove the center armrest. Refer to CENTER ARMREST, REMOVING AND INSTALLING, Q3 .

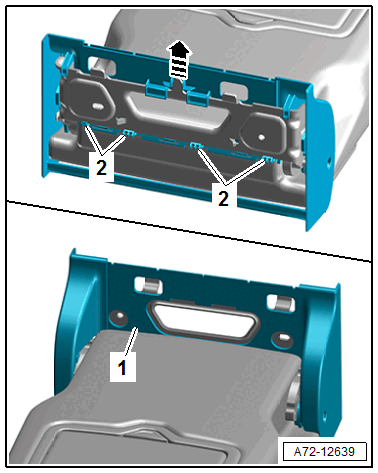

-- Release the center armrest trim panel -1- on the retainers -2- from the center armrest.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the trim panel upward out of the center armrest -arrow- and remove.
