CUPHOLDER, Removing And Installing: Removing

-- Fold down the center armrest.

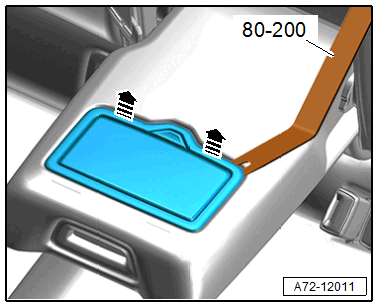

-- Pry out the cupholder on the rear edge using the Pry Lever: 80-200  in direction of -arrows-.

GWWA72-12011Courtesy of AUDI OF AMERICA, LLC

-- Remove the cupholder.
