Single Seats, Removing And Installing, Q3: Removing
-- Remove the seat cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
Equipment/market-Specific Version:

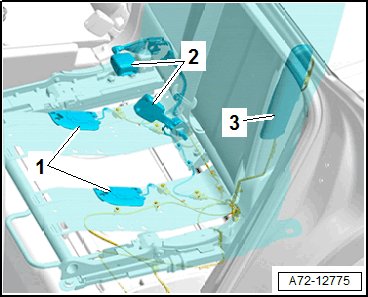

-- Rear seat with passenger occupant detection sensors -1-, seat belt fastening detection -2- and/or thorax airbag -3- : remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
TIP:
- The market-specific versions with passenger occupant detection sensor -1- and seat belt fastening detection can be identified by seat belt latches -2- with electric connectors.
- Equipment versions with a thorax airbag -3- can be identified by the "Airbag" name badge in the cover.
Risk of airbag deployment.
Risk of injury.
- Check if the airbag indicator lamp turns on or blinks.
- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.
- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.
- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

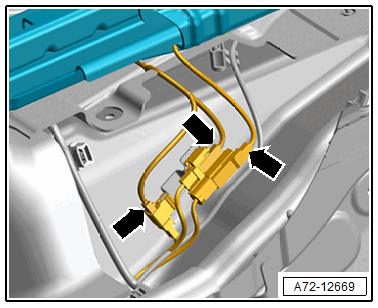

-- Disconnect the connectors -arrows- and free them up.
Continuation:
-- Move the rear seat into the most forward position and fold the backrest forward.

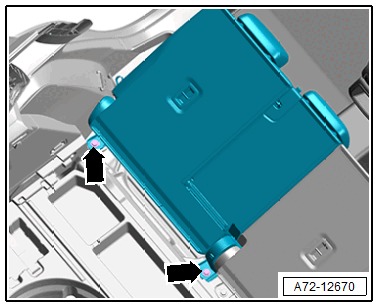

-- Remove the bolts -arrows-.
-- Fold the backrest -2- toward the rear and adjust the rear seat to the rear position.
-- Remove the bolts -arrows-.
-- Fold the backrest forward again.
-- Lift the seat frame -1- at the front.
-- To protect the trim panels before prying out the rear seat, apply the Universal Vehicle Protector: VAS871001 .
-- Remove the rear seat from the vehicle with a second technician.
