Bench Seat, Removing And Installing, A3: Removing

-- Move the front seats all the way forward.

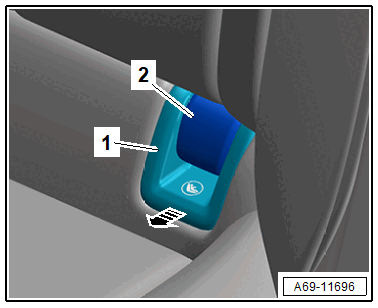

-- Remove the guide -1- with the cover -2- for the child seat anchor toward the front in direction of -arrow- and let it hang on the bench seat.

GWWA69-11696Courtesy of AUDI OF AMERICA, LLC

-- Repeat the process on the rest of the child seat anchor guides.

-- Grab the bench seat -1- under the molded part -2- using both hands on one side.

GWWA72-12246Courtesy of AUDI OF AMERICA, LLC

-- Using both hands on one side, forcefully pull the bench seat upward in direction of -arrow A-, which will release the molded part from the front mount -3-.

-- Repeat the procedure on the other side of the bench seat in direction of -arrow B-.

-- Push the left and right sides of the bench seat slightly toward the rear and then pull upward, which will release the molded part from the mount on the side.

-- Disconnect the connectors and remove the bench seat.
