Seat Rail Cover, Removing And Installing, Side Sill Side: Removing

-- Move the front seat all the way forward and up.

-- Remove the threaded stud/pin -3- and remove the expanding clip -2- from the center seat rail cover -1-.

GWWA72-12063Courtesy of AUDI OF AMERICA, LLC

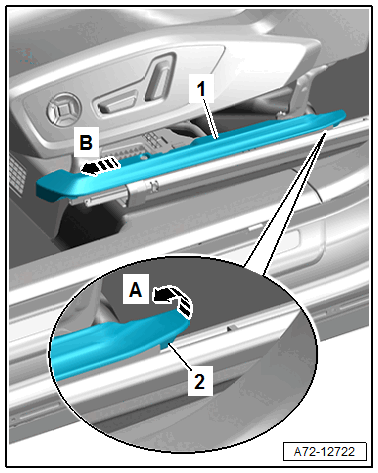

-- Release the rear hook -2- on the seat rail in direction of -arrow A-.

GWWA72-12722Courtesy of AUDI OF AMERICA, LLC

-- Slide the seat rail cover on the side sill side -1- in the direction of travel in direction of -arrow B- and remove it.
