Seat Height Adjustment Handle, Removing And Installing: Removing

Fig 1: Pulling Seat Height Adjustment Handle Up Hold It In That Position

Courtesy of AUDI OF AMERICA, LLC

-- Pull the seat height adjustment handle -1- slightly upward and hold in this position.

-- Remove the seat height adjustment handle as far as possible from the front seat.

-- Guide the T-Handle Hook: 3438  between the seat height adjustment handle and seat frame trim panel -2-.

-- Release the locking tab -3- with the T-Handle Hook: 3438  and remove the seat height adjustment handle at the same time in the direction of -arrow- from the lever.

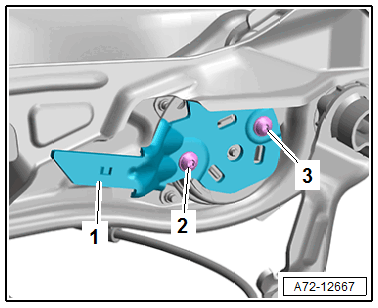

-- To remove the seat height adjustment operating lever -1-, remove the seat frame trim panel on the side sill side. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, SIDE SILL SIDE .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3- and remove the operating lever.
