Seat Height Adjustment Motor, Removing And Installing, Power Seat Adjustment: Removing

-- Move the front seat to the highest position possible to keep the torsion bar tension as low as possible.

-- Remove the seat frame trim panel on the side sill side. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, SIDE SILL SIDE .

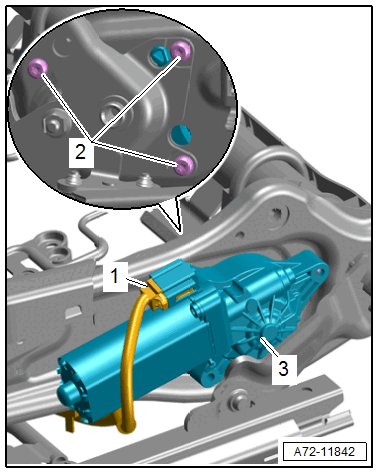

-- Disconnect the connector -1- at seat height adjustment motor.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The lower bolt must be removed from below.

-- Push the cover and cushion on the seat pan near the threaded connections to the side.

-- Remove the bolts -2-.

-- Loosen the motor -3- for the seat height adjustment from the seat pan and remove.
