Seat Forward/Back Adjustment Handle, Removing And Installing, Manual Seat Adjustment, A3: Removing
-- Move the front seat all the way to the rear in its highest position.

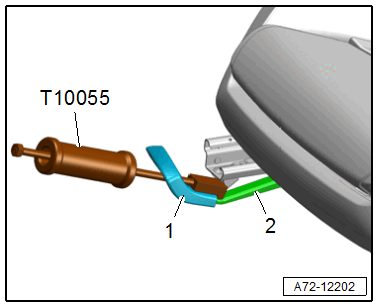

-- Place the Puller - Unit Injector: T10055
on the handle -1- and remove the handle from the actuator rod -2-.
