Seat Depth Adjuster Trim, Removing And Installing: Removing

-- Move seat depth adjuster forward.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- If equipped, remove the fire extinguisher mount. Refer to FIRE EXTINGUISHER MOUNT, REMOVING AND INSTALLING .

-- If equipped, remove the storage compartment. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- If equipped, remove the Owner's Manual bracket. Refer to OWNER'S MANUAL BRACKET, REMOVING AND INSTALLING .

-- Push together the tabs in direction of -arrows- on the trim -1- with pliers or release with the Trim Removal Wedge: 3409  .

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the front seat trim -1- downward in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

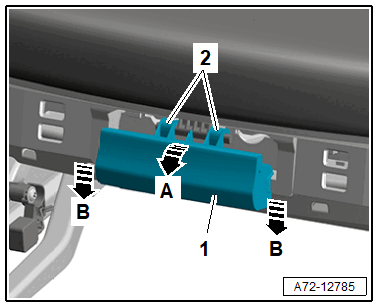

-- A3: use a flat-head screwdriver to release the hooks -2- in direction of -arrow A- and unclip the seat depth adjuster handle -1- from the handle mount in direction of -B arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Q3: release the retainer -1- using a flat-head screwdriver and remove the seat depth adjuster handle -2- from the handle mount in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC
