Overview - Glove Compartment

The overview shows the left side as an example.

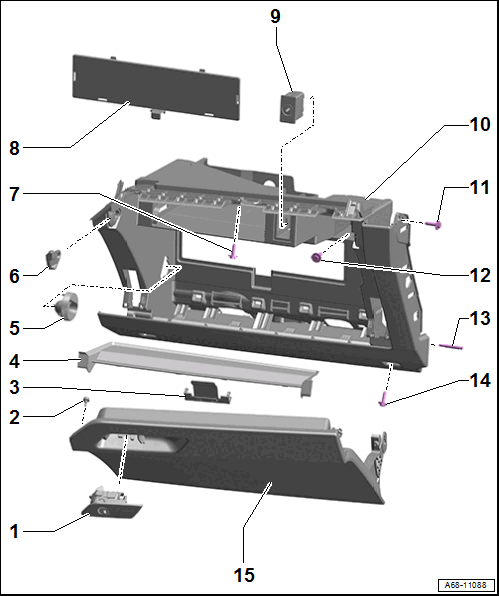

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Glove Compartment Handle
   • Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING
   • Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING
2. Stop Buffer
   • Not available separately from the repair kit. Refer to the Parts Information.
3. Multifunction Mount
   • Clip in the glove compartment lid
   • Not available separately from the repair kit. Refer to the Parts Information.
4. Insert
5. Vent/Blind Cover
6. Lock Bar Guide
   • Clip in the glove compartment
   • Not available separately from the repair kit. Refer to the Parts Information.
7. Bolt
   • Quantity: 3
   • Tightening specification and sequence. Refer to Fig 2.
8. Cover
   • For the pollen filter
9. Front Passenger Airbag Deactivation Key Switch -E224- /Blind Cover
   • Rest of World equipment/market version:
   • Refer to the appropriate service information
10. Glove Compartment
    • Emergency Release. Refer to GLOVE COMPARTMENT LID EMERGENCY RELEASE, OPERATING .
    • Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING
11. Bolt
    • Tightening specification and sequence. Refer to Fig 2.
12. Bolt
    • Quantity: 2
    • Tightening specification and sequence. Refer to Fig 2.
13. Hinge Pin
    • Quantity: 2
    • For the glove compartment lid
    • Not available separately from the repair kit. Refer to the Parts Information.
14. Bolt
    • Quantity: 2
    • Tightening specification and sequence. Refer to Fig 2.
15. Glove Compartment Lid
    • Emergency Release. Refer to GLOVE COMPARTMENT LID EMERGENCY RELEASE, OPERATING .
    • Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING

Glove Compartment - Tightening Specification and Sequence

Fig 2: Glove Compartment - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- in the sequence -1 to 8- to 3 Nm as shown here as an example.
