Glove Compartment Lid, Removing And Installing: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the damping element and Glove Compartment Lamp Switch -E26-. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .

-- Place the glove compartment on a soft surface.

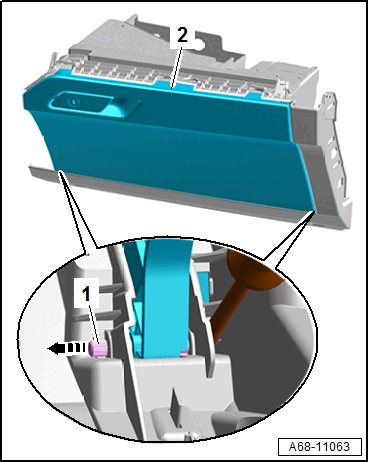

-- Pry out the glove compartment lid hinge pin -1- with a screwdriver in the -direction of the arrow- and remove using pliers.

GWWA68-11063Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite hinge pin.

-- Remove the glove compartment lid -2- from the glove compartment.
