Sun Visor, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the sun visor mount expanding caps -1- -arrow- by sliding the Angled Screwdriver :VAS 6416  just approximately 1 mm under the cap.

TIP:

If the long reach special wrench is inserted farther, it will be located under the sun visor mount. It is then not possible to pry out the expanding cap.

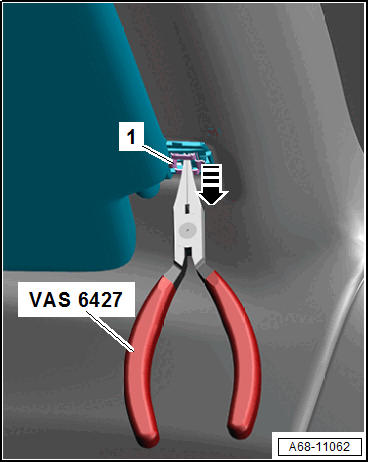

-- Press the front clamp -1- together with the Release Pliers :VAS 6427  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the front sun visor mount with the clamps downward -arrow- from the opening in the body.

TIP:

-- Pay attention that the clamp does not engage again.

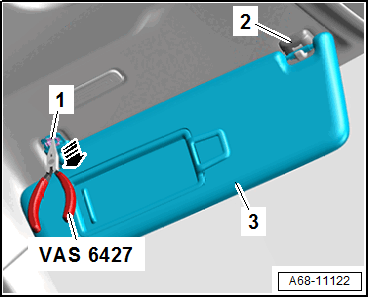

-- Detach sun visor -3- at the center mount -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the clamp with the Release Pliers :VAS 6427  .

-- Unclip the sun visor mount -1- with the clamp downward -arrow- from the opening in the body and remove it.

-- Disconnect the connector and remove the sun visor.
