Overview - Sun Visors

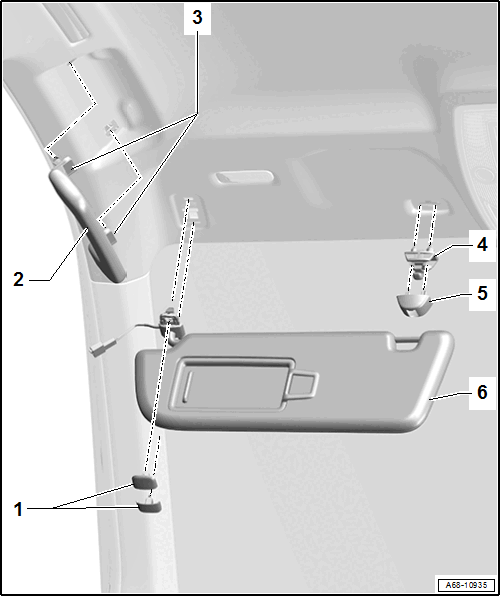

Fig 1: Exploded View Of Sun Visors

Courtesy of AUDI OF AMERICA, LLC

Expanding Caps
- Clipped into the sun visor
Roof Grab Handle
- Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING
Expanding Caps
- Only unclip up to the lock position, but do not remove completely
Center Support
- Do not damage spreader clips when inserting
- Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING
Expanding Cap
- Clipped into the sun visor center support
Sun Visor
- Clip in the sun visor mount in the opening in the body
- Refer to SUN VISOR, REMOVING AND INSTALLING
