Sill Panel Trim, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution and let it dry.

-- Remove the protective film from the adhesive tape -1, 2, and 3-.

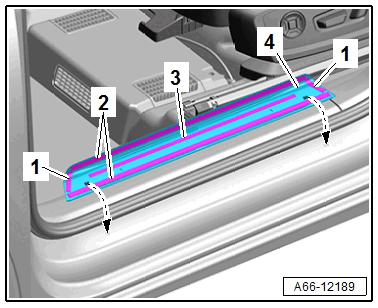

GWWA66-12189Courtesy of AUDI OF AMERICA, LLC

-- Position the sill panel trim -4- over the pins on the side sill -arrows-.

-- Press the sill panel trim by hand on the side sill.
