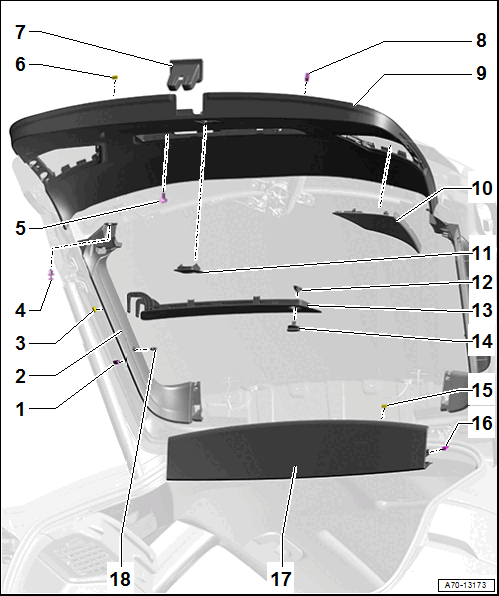

Overview - Rear Lid Lower Trim Panel
Courtesy of AUDI OF AMERICA, LLC
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool: T40280
. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Side Trim Panel
- Rubber Buffer
- Quantity: 2
- Insert in the trim panel
- Expanding Rivet
- Removing with Pliers: T40172C
- Bolt
- Rubber Buffer
- Quantity: 6
- Insert in the trim panel
- Rear Lid Latch Trim Panel
- Clip
- Quantity: 14
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool: T40280
. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Lower Trim Panel
- Tail Lamp Cover
- Quantity: 2
- Clipped in the rear lid trim panel
- Emergency Release Cover
- Unclip using the Trim Removal Wedge: 3409
- Clipped in the rear lid trim panel
- Lock Bolt
- For the emergency triangle cover
- Clip into the knob
- Emergency Triangle Cover
- Engaged in the rear lid trim panel
- Knob
- For the emergency triangle cover locking mechanism
- Rubber Buffer
- Quantity: 3
- Insert in the trim panel
- Clip
- Quantity: 4
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool: T40280
. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Upper Trim Panel
- Luggage Compartment Cover Bracket
