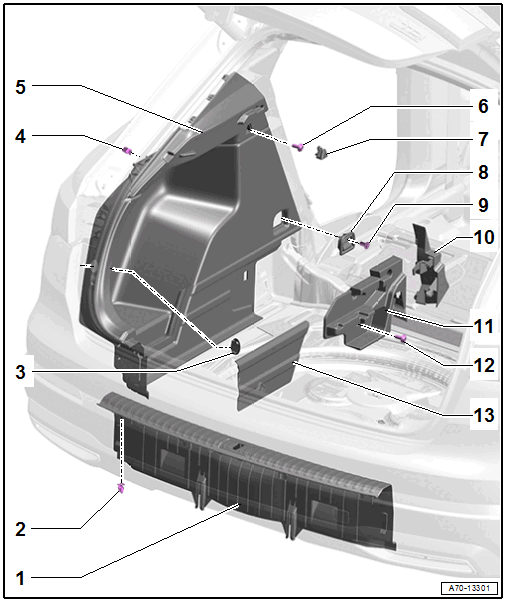

Overview - Luggage Compartment Side Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Lock Carrier Trim Panel
   • Stretch the lip of the rear lid seal over
   • Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING
2. Clip
   • Quantity: 4
   • Insert in the trim panel
   • Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280  and insert them into the trim panel for installation.
   • Replace damaged or deformed clips
3. Plug
   • Clip into the trim panel
4. Clip
   • Quantity: 4
   • Insert in the trim panel
   • Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280  and insert them into the trim panel for installation.
   • Replace damaged or deformed clips
5. Luggage Compartment Side Trim Panel
   • Press on until it engages audibly
   • Stretch the lip of the rear lid seal over
   • Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING
6. Bolt
   • 1.5 Nm
7. Bag Hooks
   • Clip into the trim panel
   • Refer to BAG HOOK, REMOVING AND INSTALLING
8. Tie Down
   • Refer to TIE DOWN, REMOVING AND INSTALLING
9. Bolt
   • 8 Nm
10. Cover
    • For the support
    • Only Q3 Sportback
    • Refer to LUGGAGE COMPARTMENT SUPPORT, REMOVING AND INSTALLING
11. Support
    • For the luggage compartment floor
    • Refer to LUGGAGE COMPARTMENT SUPPORT, REMOVING AND INSTALLING
12. Bolt
    • Quantity: 3
    • 8 Nm
13. Cap
    • Insert in the trim panel
