Component Location Overview - Luggage Compartment Trim Panels

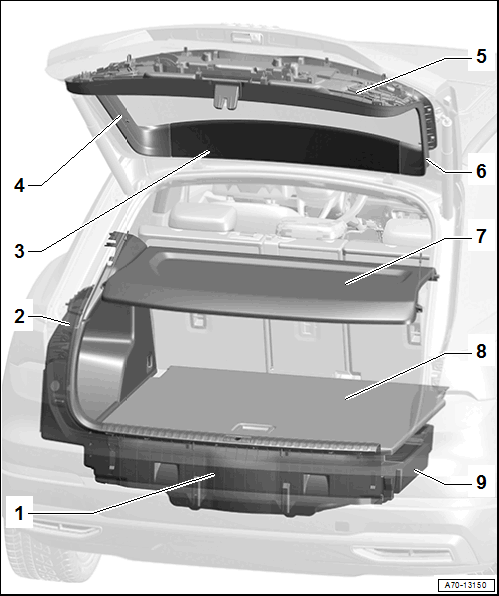

Fig 1: Exploded View Of Luggage Compartment Trim Panels

Courtesy of AUDI OF AMERICA, LLC

1. Lock Carrier Trim Panel
   • Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL
2. Luggage Compartment Side Trim Panel
   • Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL
3. Rear Lid Upper Trim Panel
   • Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
4. Rear Lid Side Trim Panel
   • Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
5. Rear Lid Lower Trim Panel
   • Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
6. Rear Lid Side Trim Panel
   • Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
7. Luggage Compartment Cover
8. Luggage Compartment Floor
   • Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
9. Vehicle Tool Kit Storage Compartment
   • Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
