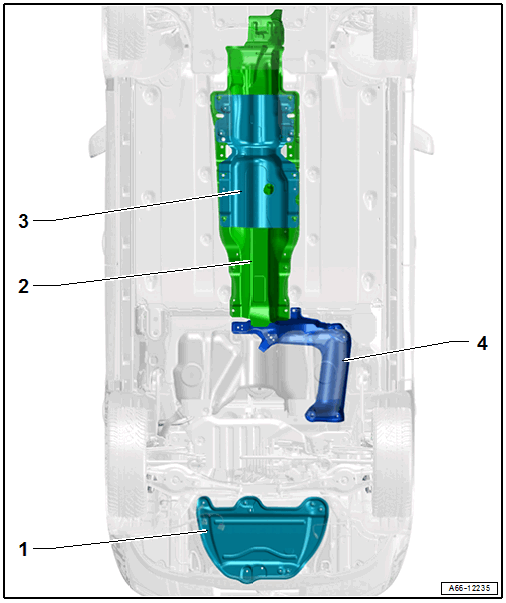

Component Location Overview - Heat Shield
- Heat Shield
- For the rear muffler
- Secured with lock washers
Equipment version with high-voltage system:
- Nuts: 2 Nm
- For the removing and installing on vehicles with a high-voltage system the fuel tank must be lowered. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Heat Shield
- For the tunnel
- Removing and Installing. Refer to TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Secured with lock washers
- Heat Shield
- For the driveshaft
- Removing and Installing. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
- Secured with lock washers
- Heat Shield
- for the exhaust system
- Equipped on some models
- Secured with lock washers
