Rear Lid Control Module -J605-, REMOVING AND INSTALLING: Removing

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

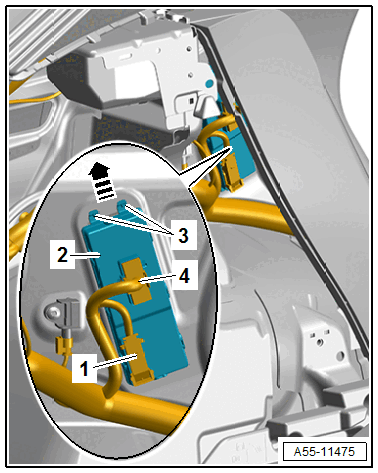

-- Disconnect the connectors -1 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -3- and at the same time push the control module -2- upward -arrow-.

• Doing so disengages the brackets from the guides.

-- Remove the Rear Lid Control Module -J605-.
