Power Rear Lid Opening Sensors -G750- / -G760-, Removing And Installing: Removing

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 .

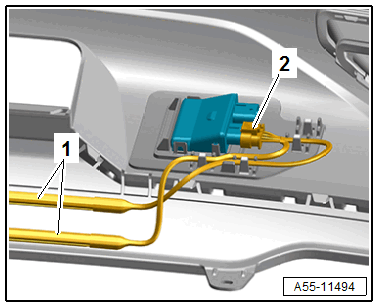

-- Disconnect the connector -2-.

GWWA55-11494Courtesy of AUDI OF AMERICA, LLC

-- Warm the adhesive using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

-- Pull off the power rear lid opening sensor -1- and remove.
