Hood Latch Release Cable, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:

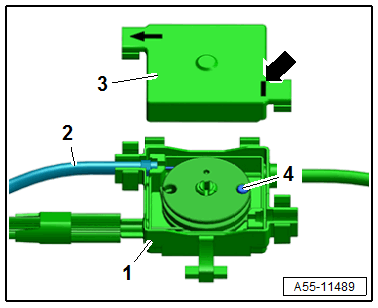

-- Engage the release cable nipple -4- in the roller of the coupling -1- and push the release cable -2- in the cable bracket.
-- Position the housing cover -3- so that the printed "line" -arrow- points toward the free coupling connection.
-- To release the hood latches evenly, adjust the release cable at the thumbwheel.
Install in the reverse order of removal while noting the following:
-- Engage the release cable nipple -4- in the roller of the coupling -1- and push the release cable -2- in the cable bracket.
-- Position the housing cover -3- so that the printed "line" -arrow- points toward the free coupling connection.
-- To release the hood latches evenly, adjust the release cable at the thumbwheel.
