Hood Latch Release Lever Mounting Bracket, Removing And Installing: Removing

-- Remove the operating lever for hood latch. Refer to HOOD LATCH OPERATING LEVER, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

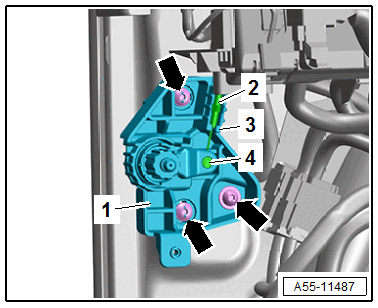

-- Loosen the release cable -2- from the cable bracket -3- and disengage the release cable nipple -4-.

GWWA55-11487Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the mounting bracket -1-.
