Charging Socket 1 LED Module -L263-, REMOVING AND INSTALLING: Removing

-- Remove the charge door unit. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .

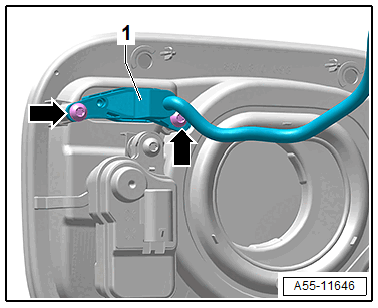

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Charging Socket 1 LED Module -L263- -item 1-.
