Charge Door Unit Trim, Removing And Installing: Removing

-- Open the charge door unit.

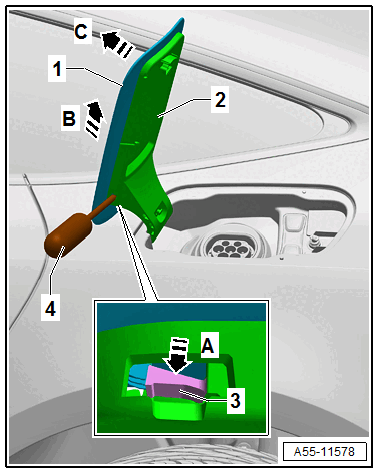

-- Using a suitable screwdriver -4- release the catch -3- in the cut-out between the trim -1- and the charge door unit -2- -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the trim -1- upward -arrow B- and remove -arrow C-.
